Home > Products > GSM Alarm Systems > G5 Plus GSM/SMS/RFID Touch Alarm System

Cellular Burglar Alarm System
With a Touch Keypad

G5 Plus

With an award-winning design, the G5 Plus system boasts an unobtrusive touch keypad that is easy on the eye and simple to operate on. Simply insert a regular-sized SIM card with credit, and when the system detects acts of intrusion, you and your family will be notified by SMS text messages and phone calls while the built-in loud siren sounds at a formidable decibel as a deterrent.

How It Simply Works

Feel free to add IP116 Plus HD WiFi Cameras to the same app and have visual confirmation of what's happening at home whenever there is an alert.


Doors/windows
are opened

Hub alarming

SMS



Motion detected

Voice calls

IP116 Plus

HD WiFi Camera
Click >

Easy to Install


Insert regular-sized
SIM card

Connect power

Download the free app

Feel safe & safe

Protection Without Boundaries

Download the G5 Plus app from either App Store or Google Play Store, and you get to control the entire system remotely with a couple of swipes and taps. Intuitive in design and operability, the G5 Plus app is more than capable of monitoring a few systems, for your home, cottage, office and so on.

Tap & Go

For the young and elderly in your family without a smartphone, the system can be quickly armed and disarmed by a simple wave of any pre-authorized RFID tag. Whenever the system is armed or disarmed by a RFID tag, you and your family will get an SMS text notification of whom just did that.

As a Second Phone

With a regular-sized SIM card with credit, the G5 Plus can also act as a phone, and you can place calls directly on the panel. One-touch speed dial is also possible.

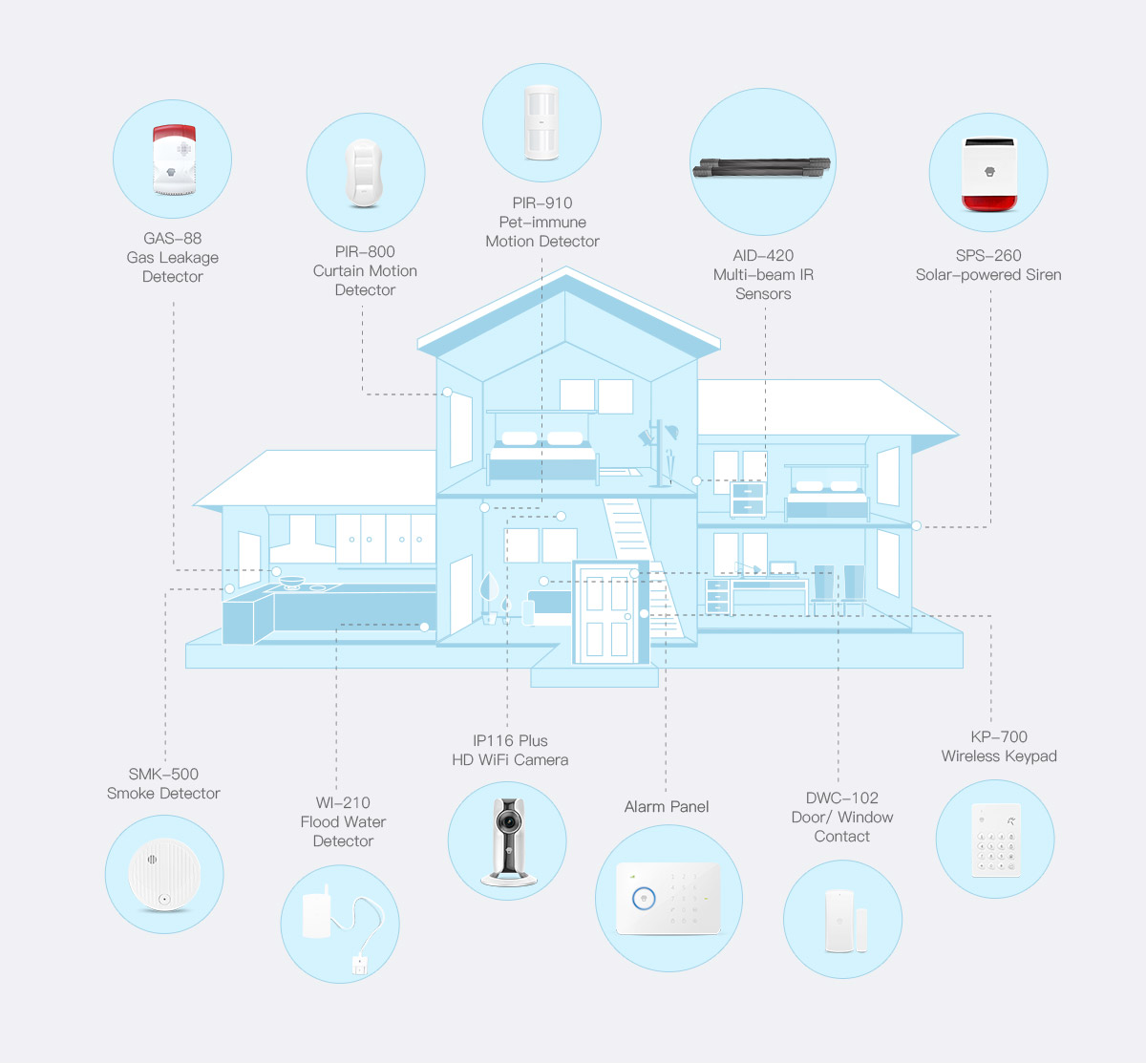

Security Around the Clock

The G5 Plus works with a wide range of wireless, battery-powered sensors and accessories that are easy to install and use, so you can scale up the system based on your specific security needs.

  • Smart Hub
    Specifications
    • Model No.G5 Plus
    • Power SupplyDC 12V 500mA
    • Battery3.7V 700mAh Polymer Battery
    • GSM Operating Frequency850/900/1800/1900MHz
    • Standby Current<50mA
    • Alarm Current<320mA
    • Internal Siren95dB
    • Expandable Accessories10 Remote Controls, 50 Sensors,50 RFID tags
    • Radio Frequency433.92MHz or 315MHz
    • Housing MaterialABS plastic + Acrylic
    • Operating ConditionTemperature: 0°C~55°C
      Relative Humidity: <80% (non-condensing)
    • Hub Dimensions188 x 132 x 26mm (L x W x H)
  • In the Box
    • G5 Plus Control Panel x 1
    • DWC-102 Door/ Window Contact x 2
    • PIR-910 Pet-immune PIR Motion Detector x 1
    • RC-80 Remote Control x 2
    • TAG-26 RFID Tag x 2
    • AC Adapter x 1
